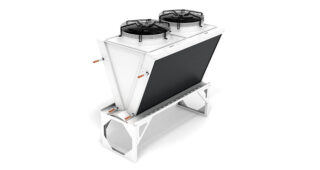

Remote Condensers

Performance range: capacity for each module: TKMicro 25: 148 kW TKMicro 32: 160 kW Fans diameter Ø 800 mm, AC or EC motor Modules from 1 to n

Performance range: capacity from 13 kW to 98 kW(*) 1-4 Fans: diameter Ø 400, 500, 630 mm, AC or EC fans   (*) Standard conditions - R404A, condensing temp: 40°C, subcooling: 3°K, desuperheat: 25°K, air temp: 25°C

Performance range: capacity from 90 kW to 870 kW (*) Fans: diameter Ø 800, 900 mm, AC or EC motor   Units can be customized with a wide range of accessories   (*) Standard conditions - R404A, condensing temp: 40°C, subcooling: 3°K, desuperheat: 25°K, air temp: 25°C

Performance range: Capacity from 10 kW to 480 kW(*) +30% capacity vs traditional condensers with the same footprint Modular design, 1-8 fans Reduced dimensions and weight Fans: diameter Ø 300, 400, 450, 500, 630, 800, 900 mm, AC or EC motor   Units can be customized with a wide range of accessories   (*)Standard conditions - R404A, condensing temp: 40°C, subcooling: 3°K, desuperheat: 25°K, air temp: 25°C

Area of use: Gas condensation Performance range: Capacity from 100 to 1915 kW (R404A, Tc= 40 °C, T1= 25 °C) Fans: Diameter Ø 900 mm, AC or EC motor Benefits: Maximum performance, minimum footprint High efficiency geometry, Modular design, 2-16 fans Piping in copper or stainless steel AISI 304 Finned pack available in a wide range of materials Complete range of accessories, 8 sound levels AFS (Air Fresh System), WFS (Wet Fin System) and EPS (Evaporative Panel System) available...

Area of use:  Gas condensation Performance range:  Capacity from 10 to 1200 kW (R404A, Tc= 40 °C, T1= 25 °C) Fans: Diameter Ø 500, 630, 800 mm, AC or EC motor Benefits: High efficiency geometry Modular design, 1-16 fans Piping in copper or stainless steel AISI 304 Finned pack available in a wide range of materials Complete range of accessories, 8 sound levels Premium series available for fans Ø 500 and 630 mm Casing in galvanized steel, powder painted
