Unit Coolers

Over 30,000 unit cooler solutions to preserve food freshness and properties. Range of applications include food preservation in cold rooms, fast freezing tunnels, food freezing and greenhouses temperature control.

In order to response to the market needs, ThermoKey provides:

low noise fans to guarantee low sound level in prcessing rooms
inspectionable, stainless steel unit coolers that are resistant and easy to sanitize
defrosting systems to guarantee maximum cooling efficiency
blast freezers to ensure the rapid freesing of foods and preserve their original properties

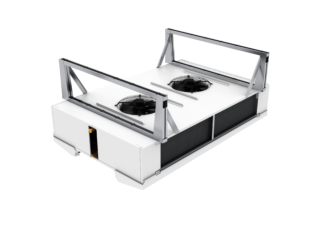

Process Dual Flow Unit Cooler

process dualflow unit cooler ThermoKey process dualflow unit cooler. To prevent heat from being lost and flowing towards the cold room during the defrosting stage and to prevent, while the unit cooler is working, the external drip tray from cooling. Area of use: processing rooms Performance range: Direct Expansion operation: capacity up to 115 kW(R404A, Te= -8° C, T1= 0° C, RH = 85%). Brine Operation: capacity up 160 kW(Glycol 30%, TW1= -10 °C, T1= 0 °C, RH = 85%). Ammonia...

Hen Unit Coolers

Area of use: Potato and vegetables storage Performance range: Capacity from 40 to 143 kW (R404A, Te = -5 °C, T1= 0 °C, RH = 90%) Fans: Diameter Ø 800 high prevalence with differents ESP value Benefits: Modular design, 2-4 fans Fin spacing 7 mm Electric defrosting system available on request Solid frame in galvanized steel

Radial Unit Coolers

Area of use: Air ducting Performance range: Direct Expansion operation: capacity from 10 to 115 kW (R404A, Te= 2° C, T1= 12° C, RH = 75%) Brine Operation: capacity from 7 to 135 kW (Glycol 30%, TW1= 0 °C, T1= 12 °C, RH = 75%) Fans: Radial ducted fans, Diameter Ø 560, 630 mm Benefits: Fin spacing: 4.5 mm or 7 mm Piping in copper or in AISI 304 stainless steel External static 150 Pa pressure Modular design, 1-4 fans Electric defrosting system available on request Casing in...

Fruit Coolers

Area of use: Cold rooms specific for the preservation of fruit and vegetables Performance range: Capacity from 21 to 50 kW (R404A, Te = -8 °C, T1= 0 °C, RH = 85%) Fans: Diameter Ø 400 and 450 mm Benefits: Modular design, 3-6 fans Fin spacing: 6 mm Electric defrosting system available on request Solid frame in galvanized, RAL9010 painted steel

Blast Freezer Unit Coolers

Area of use: Cold rooms specific for either product cooling or fast freezing Performance range: Capacity from 14 to 107 kW (Te = -40 °C, T1 = -35 °C, RH = 90%) Fans: Diameter Ø 630 mm Benefits: External static 100 Pa pressure (standard); can reach 400 Pa with special tubular fans Piping in copper or in AISI 304 stainless steel Finned pack available in a wide range of materials Fin spacing: 12 mm Various defrosting systems available Casing: available in aluminium, in AISI 304...

Industrial Dual Flow Unit Coolers

Area of use: Medium and large cold rooms and large refrigerated warehouses to preserve fresh or frozen products Medium and large processing rooms Performance range: Direct Expansion operation: capacity up to 115 kW (R404A, Te= -8° C, T1= 0° C, RH = 85%) Brine Operation: capacity up 160 kW (Glycol 30%, TW1= -10 °C, T1= 0 °C, RH = 85%) Ammonia Operation: capacity up 170 kW (NH3, Te= -8 °C, T1= 0 °C, RH = 85%) Fans: Diameter Ø 500-560-630 mm, AC motor. Benefits: Modular design, 1-5...

Industrial Unit Coolers

Area of use: Medium and large storage cold rooms or refrigerated warehouses, for the preservation of fresh and frozen products, for aging process, for long time preservation in medium and large processing rooms. Performance range: Direct Expansion operation: capacity from 7 to 209 kW (R404A, Te= -8° C, T1= 0° C, RH = 85%) Fin spacing: 4.5 -7 - 11 - 12mm Brine Operation: capacity from 7 to 240 kW (Glycol 30%, TW1= -10 °C, T1= 0 °C, RH = 85%) Fin spacing: 4.5 - 6 - 8 - 12mm Ammonia...

Commercial Dual Flow Unit Coolers

Area of use: Small and medium cold rooms to preserve fresh or frozen products Small and medium processing rooms Performance range: Capacity from 1,5 to 20 kW (R404A, Te = -8 °C, T1= 0 °C, RH = 85%) Fans: Mono-phase, Ø 350 mm Benefits: Modular design, 1-4 fans Fin spacing: 3 mm 6 mm Electric defrosting system available on request Casing: available in aluminium, in stainless steel AISI 304 or RAL9010 painted

Light Cubic Unit Coolers

Area of use: Small and medium cold rooms to preserve fresh or frozen products Performance range: Direct Expansion operation: capacity from 1,44 to 47 kW (R404A, Te= -8° C, T1= 0° C, RH= 85%) Brine Operation: capacity from 1 to 20 kW (Glycol 30%, TW1= -10 °C, T1= 0 °C, RH = 85%) Fans: Diameter Ø 300, 350, 400 and 450 mm Benefits: High efficiency in compact sizes Modular design, 1-4 fans Fin spacing: 4 mm, 6 mm or 8mm Solid frame in galvanized steel, cowlings in ABS (on request...
