Features
  • Single module with 4 cores and 2 fans provides 200 kW
  • Available from 1 to 5 modules (up to 1000 kW)
  • Low installations and transportation cost (2 MW in one container)
  • High reliability and high redundancy
  • Tier3 and Tier4 design available on request (each module can be isolated and quickly fixed while still delivering the requested capacity)
  • Easy maintenance and core cleaning
  • New header for low pressure drops and high internal corrosion resistance
  • Customized EC power absorption meter and optimization on request
  • Multi System Dual Flow patented solution for closed loop adiabatic system and heat recovery available on request
  • High corrosion resistance due to same tube and fin material
  • High efficiency, minimal footprint
  • Only 2 inlet, 2 outlet connections

Patent pending

Performance range:

  • Capacity from 200 to 1000 kW
    (ethylene glycol 35%, Tw1=40°C, Tw2=35°C, T1=25°C)

Fans:

  • Diameter Ø 800, 900 mm, EC motor

Modules:

  • From 1 to 5

ADVANCED ENGINEERING

Patented solution for heat recovery and adiabatic systems.

Multi System Dual Flow:

  • Option for heat recovery in condensers and coolers.
  • Closed-looped booster up to +52% capacity, zero water consuption, no hygenic condition problems.

Multi System Dual Flow heat recovery working principle

INSTALLATION

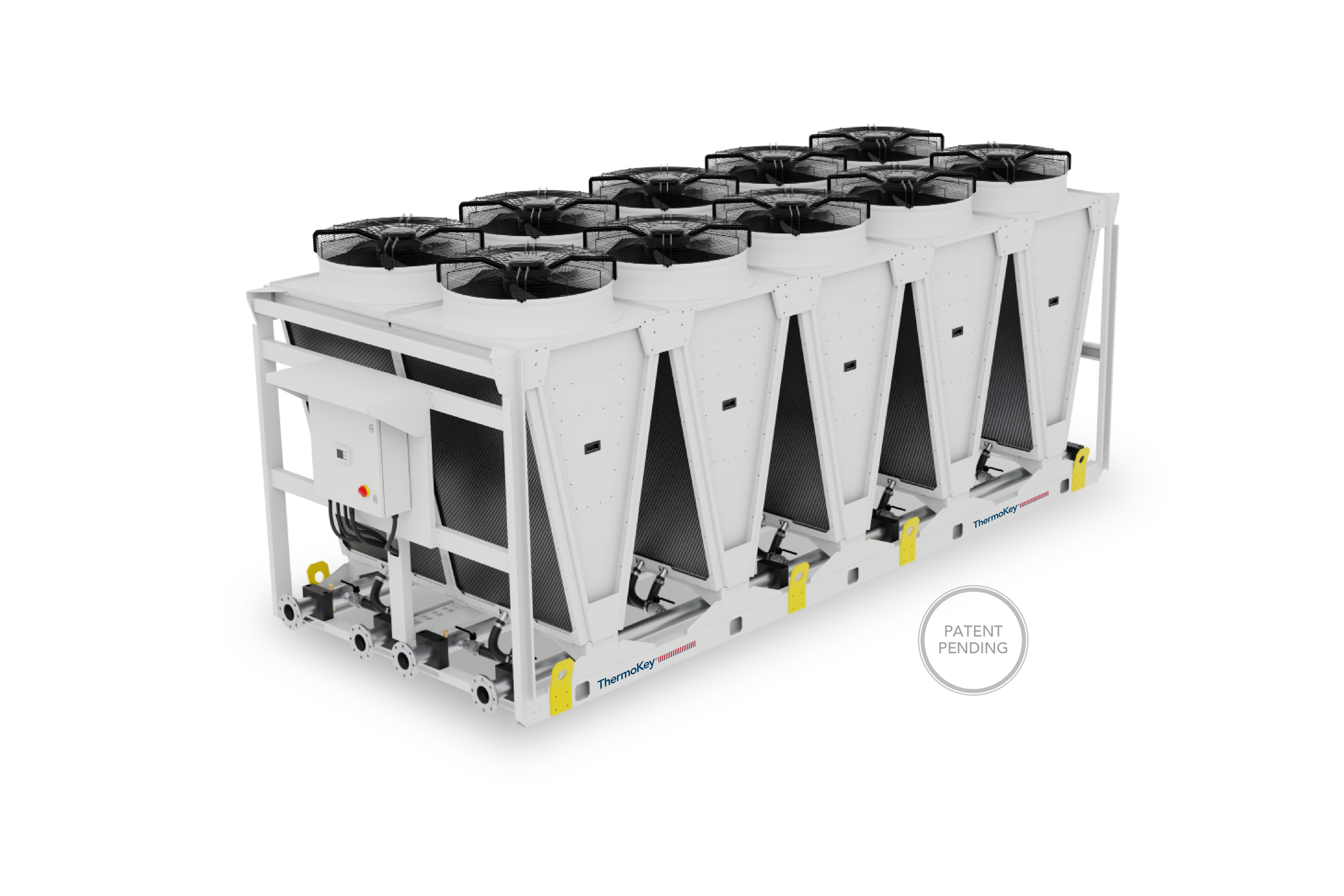

The Modular Dry Cooler is a compact solution for low and high heat rejection typical of large units deliverable in multiple numbers of modules.

The microchannel solution does not need special transport or high cube /open top containers, therefore it can also be installed in city centres where handling is often more difficult.

Up to 40% less installation costs
reduce overall costs of setup, crane renting and operations.

Up to 40% less load on the roof
alluminium modules: less weight, less load on the roof (3.500 Kg-8 modules Vs 5.500 Kg-traditional unit).

Easily increase power when needed
in case of change of capacity, the modular system can adapt over time. Identical cores, with the same pressure drops, allow simple modular expansion independently from the size.

SPECIAL FEATURES

The dimensions allow two units of 5 modules to be transported in a 40HC container.
